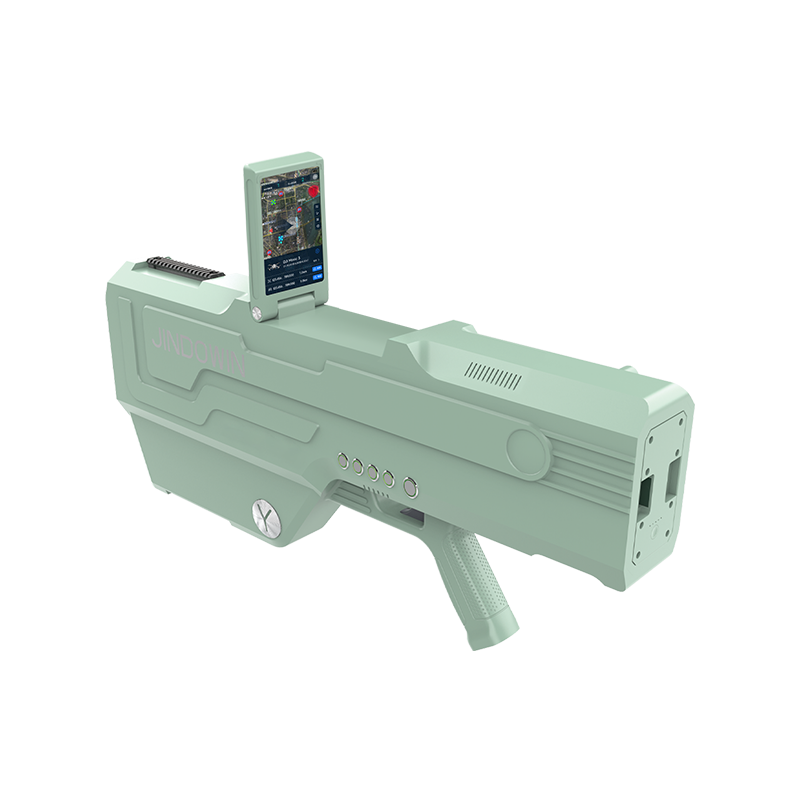

SS-HJ300G Portable Counter-UAS Handheld Jamming & Deception Device
描述
- Product Overview
The SS-HJ300G Portable Counter-UAS Handheld Device is developed by Shenzhen Jindowin Technology Co., Ltd. (Jindowin). It is a next-generation portable UAV detection, jamming and deception (“detect-jam-deceive”) system built on an Android-based edge-cloud integrated architecture, combining passive RF detection and localization, multi-band electromagnetic suppression and GNSS spoofing in a single unit.
The device effectively disrupts UAV command-and-control links, video transmission links and navigation links, forcing unauthorized drones to land automatically, return to base, or fly under control to a designated safe zone.The unit features a rifle-style ergonomic design with a 5-inch anti-glare touchscreen for one-button operation, supporting both band-selective and full-band jamming modes. The intelligent electromagnetic suppression and navigation deception technologies cover a 300 MHz – 6 GHz detection range with 4-constellation GNSS spoofing (GPS / GLONASS / Galileo / BeiDou, range adjustable 0-3000 m). Weighing only 6 kg with a hot-swappable battery (>= 90 minutes full-band jamming), it is suitable for military, police, urban security, large-event protection and border patrol missions.
- 2. Core Technical Specifications
| Product Name | SS-HJ300G Portable Counter-UAS Handheld Jamming & Deception Device |
| Product Type | Portable handheld counter-UAS device (detection + jamming + GNSS spoofing, rifle-style design) |
| Working Principle | RF detection & localization + multi-band electromagnetic jamming + navigation deception (detect-jam-deceive integrated) |
| Dimensions | 780 mm x 290 mm x 75 mm |
| Weight | 6.0 kg (base version); upgraded version <= 8 kg with quick-mount tripod interface |
| Detection Range | 300 MHz – 6 GHz, detection 1-3 km (environment-dependent) |
| Jamming Range | 1-2 km (1-1.5 km standard environment; up to 3 km under favorable EM conditions)
Customizable: higher-power version extends effective range to 2-3 km |
| Jamming Bands | 800M / 900M / 1.5G / 2.4G / 5.2G / 5.8G (incl. 4-constellation GNSS bands)
Customizable: expandable to 8+ bands, 140-7500 MHz full coverage (433M / 1.2G / 5.1G addable) |
| Total RF Output Power | 100 W (combined); >= 40 dBm per module |
| GNSS Spoofing | GPS / GLONASS / Galileo / BeiDou 4-constellation spoofing, range adjustable 0-3000 m |
| Jamming Angle | Horizontal 0-60 deg; vertical -60 to +60 deg (high-gain directional array) |
| Display & Operation | 5-inch anti-glare touchscreen, one-button start; band-selective / full-band modes |
| Power Supply | Built-in Li-ion battery 29.4 V (>= 200 Wh, hot-swappable <= 60 s); 220/230 V 50 Hz single-phase charger
Customizable: 415 V 50 Hz three-phase via industrial transformer / adapter |
| Continuous Jamming Time | >= 90 minutes (full-band jamming) |
| Ingress Protection | IP65 (dust-proof and water-resistant, outdoor use) |
| Operating Temperature | -25 C to +55 C |
| Networking & Upgrade | 4G / 5G optional; USB / online firmware upgrade; interoperates with radar, EO/IR, RF detection and spoofing systems |
| Supported Drones | DJI series, Autel, Dahua, Hikvision and other mainstream consumer / enterprise drones |
| Certification | Ministry of Public Security (3rd Research Institute) test report; CE / FCC; ISO 9001 / 14001 / 45001; design patent, utility model patents, software copyrights, lightning protection test report |
| Packaging | Flight case |
| Lead Time / MOQ | 30 days / MOQ 1 unit (customized versions 8-12 weeks) |
- Key Features
| Detect-Jam-Deceive Integration | Passive RF detection, multi-band jamming and 4-constellation GNSS spoofing in one device – a complete single-soldier low-altitude defense solution. |
| Full-Band Wide Coverage | 6 jamming bands cover mainstream drone C2, FPV and navigation links; customizable expansion to 8+ bands (140-7500 MHz) including 433 MHz, 1.2 GHz and 5.1 GHz. |
| One-Key Operation | Single-button start on a 5-inch anti-glare touchscreen; band-selective or full-band jamming switchable within seconds for emergency response. |
| 4-Constellation GNSS Spoofing | GPS / GLONASS / Galileo / BeiDou spoofing with adjustable range (0-3000 m), luring hostile drones to a controlled safe zone instead of mere signal loss. |
| Long Endurance & Fast Battery Swap | >= 90 minutes full-band jamming; tool-free hot-swappable battery (<= 60 s changeover) keeps the device in continuous mission readiness. |
| Rugged Field Design | IP65 protection and -25 C to +55 C operating range for all-weather outdoor deployment in coastal, field and urban environments. |
| Edge-Cloud Architecture | Android-based edge-cloud integration supports fleet management, USB / 4G / 5G online upgrade and interoperability with radar, EO/IR and RF detection systems. |
| Whitelist Anti-Interference | Configurable whitelist prevents unintentional jamming of friendly drones, improving safety in complex joint operations. |
- Typical Application Scenarios
- Urban Patrol & Public Order – rapid countermeasures against illegally flown drones to safeguard city low-altitude order;
2· Major Event Security – temporary no-fly zones for government conferences, sports events and other crowded venues;
- Airports / Ports / Critical Infrastructure – perimeter protection around airports, naval installations, energy facilities and other key areas;
- Military Field Operations / Border & Coastal Camps – single-soldier handheld or shoulder-carry low-altitude defense missions;
- Prison & Facility Security – preventing drones from delivering contraband or conducting covert surveillance;
- Corporate / Industrial Security – preventing drone surveillance of data centers, equipment and production processes.
