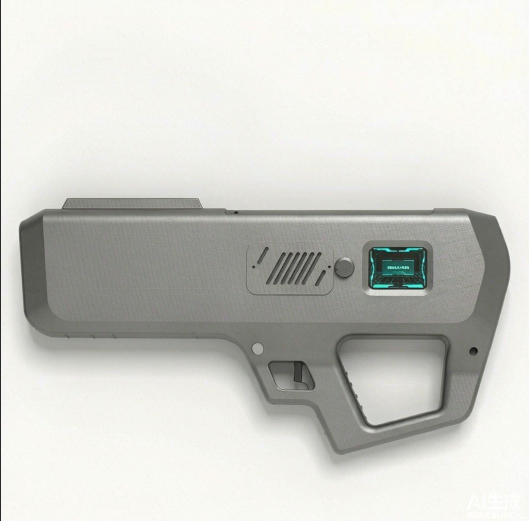

SS-HJ200 Portable Counter-UAS Handheld Jamming Device
描述
- Product Overview
The SS-HJ200 Portable Counter-UAS Handheld Jamming Device (anti-drone jammer gun) is developed by Salem Science Limited. It is a highly integrated low-altitude defense product that applies multi-band electromagnetic jamming against the drone’s communication data link, video transmission link and navigation link, rapidly cutting off the connection between the drone and its remote controller. This forces unauthorized drones to land automatically or return to base, securing the low-altitude airspace around airports, major events, critical facilities, prisons and field military operations.
The device features an ergonomic rifle-style design with balanced weight distribution and a low center of gravity close to the wrist. A non-slip grip and shoulder strap allow both handheld and shoulder-carry use. An anti-glare OLED screen displays real-time jamming status, battery level and device location. It supports concurrent interception of multiple drones and whitelist configuration to avoid interfering with friendly drones. The tool-free hot-swappable battery supports long patrol and continuous operation.
- Core Technical Specifications
| Product Name | SS-HJ200 Portable Counter-UAS Handheld Jamming Device |
| Product Type | Portable handheld counter-UAS jamming device (rifle-style design) |
| Jamming Principle | Multi-band electromagnetic jamming (cuts RC / FPV / navigation links) |
| Dimensions | 663 mm × 298 mm × 88 mm |
| Weight | ≤ 3.0 kg (incl. battery) |
| Jamming Range | 1–2 km (environment-dependent; field-tested 1500–2000 m) |
| Jamming Angle | ≥ 30° (directional high-gain antenna) |
| Response Time | ≤ 2 seconds |
| Transmit Power | 40 dBm per channel (≈10 W); antenna power capacity 100 W |
| Jamming Bands | 2.4G / 5.8G / 800MHz / 900MHz / 1.4G / 1.6GHz (incl. GPS / BeiDou navigation bands; customizable up to 300MHz–6GHz full band) |
| Power Supply | Built-in Li-ion battery 29.4V (tool-free hot-swappable) |
| Continuous Jamming Time | > 150 minutes (≥ 2.5 hours) |
| Charging Time | Approx. 3–4 hours |
| Display | Anti-glare OLED touchscreen (jamming status / battery / location / drone detection data) |
| Protection Rating | IP65 (dust-proof and water-resistant, outdoor use) |
| Operating Temperature | -20 ℃ ~ +50 ℃ |
| Networking | 4G / 5G optional; interoperates with radar, EO/IR, RF detection and GNSS spoofing systems |
| Supported Drones | DJI series, Autel, Dahua, Hikvision and other mainstream consumer / enterprise drones |
| Certification | CE / FCC / RoHS; design patent, utility model patent, software copyright, lightning protection test report |
| HS Code | 8543709960 |
| Packaging | Flight Case |
| Lead Time / MOQ | 30 days / MOQ 1 unit |
- Key Features
| ◆ Concurrent Multi-Drone Interception | Optimized power amplifiers and waveform scheduling algorithms suppress multiple targets in swarm / formation scenarios, shortening airspace response time. |
| ◆ Full-Band Wide Coverage | Covers the common frequency bands of mainstream drone brands and is compatible with legacy and new models and protocols for versatile one-device countermeasures. |
| ◆ Safe in Crowded Areas | Controlled directional energy projection minimizes electromagnetic impact on unrelated areas — ideal for major events, business districts, schools, stations and airport perimeters. |
| ◆ 2-Second Rapid Response | One-key instant activation with scenario-based mode switching for emergency response to sudden drone intrusions. |
| ◆ Balanced Ergonomic Design | Center of gravity aligned with the natural wrist angle; non-slip grip and shoulder strap significantly reduce fatigue during prolonged use. |
| ◆ Fast Battery Swapping | Tool-free hot-swap battery with second-level replacement; runtime flexibly extended to match mission duration. |
| ◆ Whitelist Anti-Interference | Configurable whitelist prevents unintentional jamming of friendly drones, improving safety and controllability in complex missions. |
| ◆ System Networking | Interoperates with radar, EO/IR, RF detection and spoofing devices to form a multi-strategy low-altitude defense solution. |
- Typical Application Scenarios
- Urban Patrol & Public Order — rapid countermeasures against illegally flown drones to safeguard city low-altitude order;
- Major Event Security — establishment of temporary no-fly zones at government conferences, music festivals, sports events and other crowded venues;
- Airports / Subways / Critical Infrastructure — perimeter protection around airports, subway networks, energy facilities and other key areas;
- Prison Security — preventing outside drones from delivering contraband or conducting covert surveillance;
- Military Field Operations / Border Camps — single-soldier handheld or shoulder-carry low-altitude defense missions;
- Corporate / Industrial Security — preventing drone surveillance of data centers, equipment and production processes.
