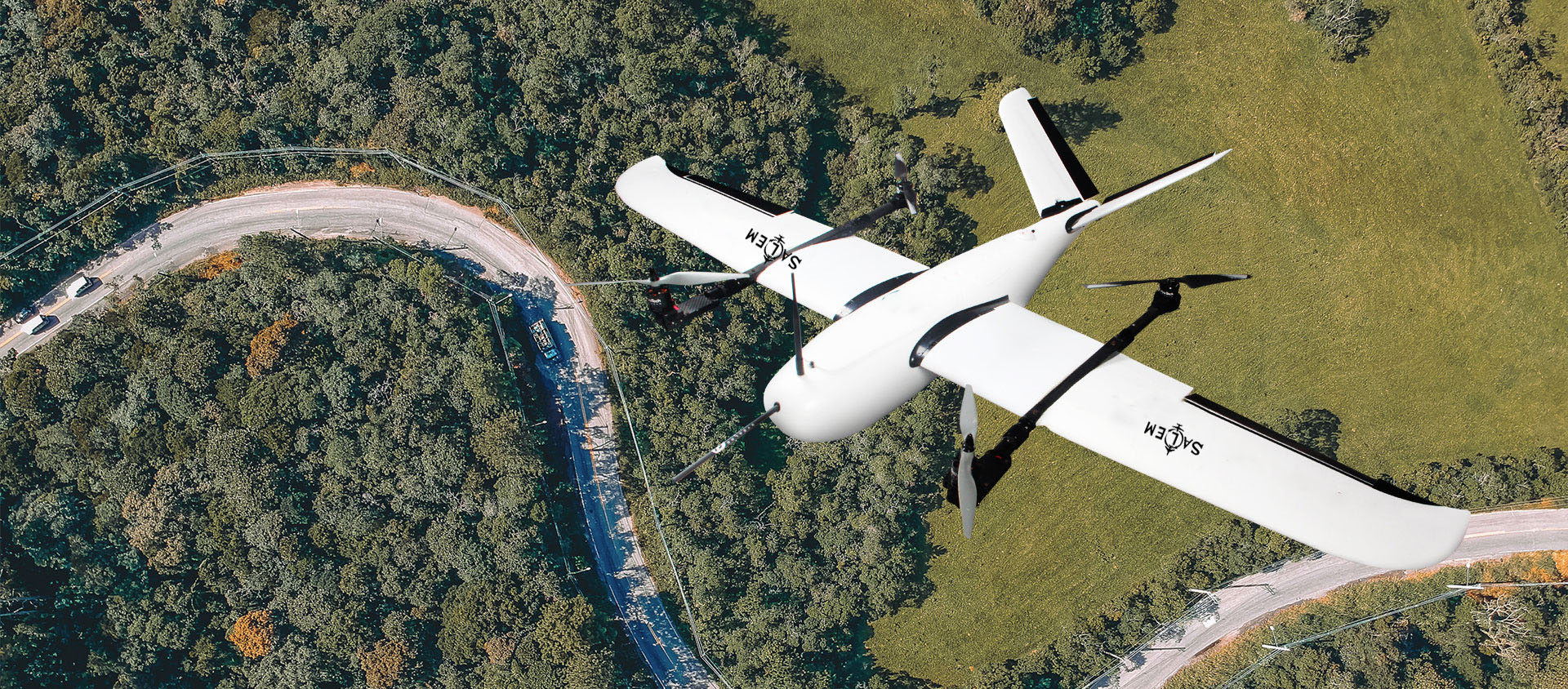

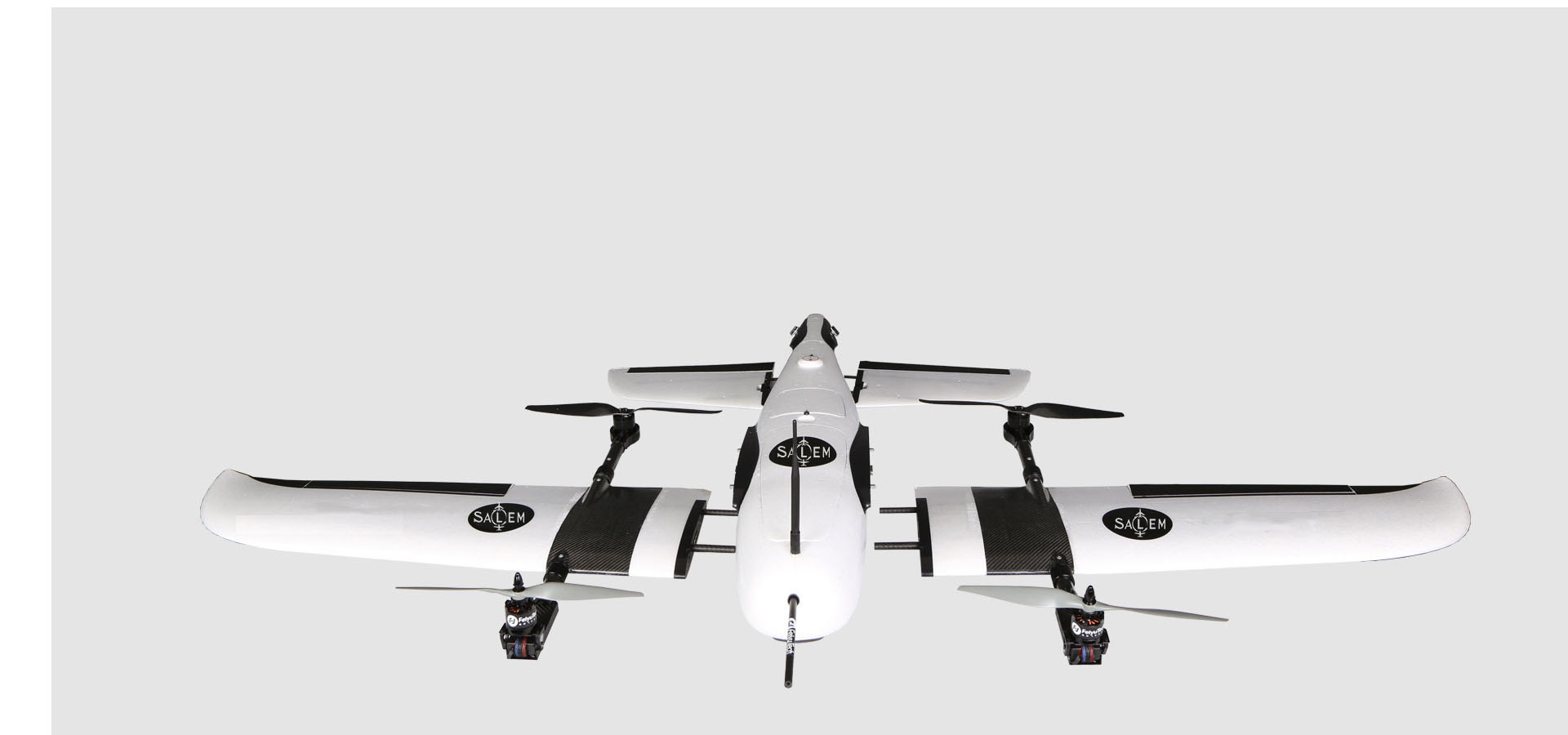

Salem SS-VT01 is a tilting-rotor vertical take-off and landing fixed-wing UAV built by Guilin Salem UAV R&D team. It combines the advantages of Multi-rotor and Fixed-wing plane, makes  it can not only take-off and land vertically, but also achieve long-time flight. VT01 equips the tilting-rotor autopilot which also developed by Salem UAV R&D team, provides the ability of  titl-rotor.

| Features

▶ Adopt the TILT ROTOR which can provide vertical take-off and landing ability.

▶ Flight time up to 80 minutes.（loading SONY RX1/A7/A9）.

▶ Detachable, small size, high mobility.

▶ Carbon fiber  material combined with high-density polyester plastic provides a strong structure and low weight.

▶ Quick deployment，ready for take off in 5 mins.

▶ Equip with the autopilot,the take-off, take photos, return to home and landing can be done with one button.

▶ With the Tap-fly function, the plane can fly to the target point in Fixed Wing Mode quickly and hover over the target point in Multi-Rotors Mode.

▶ Automatic  route  generation,  fixed   point  and  fixed  distance   photography  can   be performed according to the GSD and overlap rate required by the mapping results.

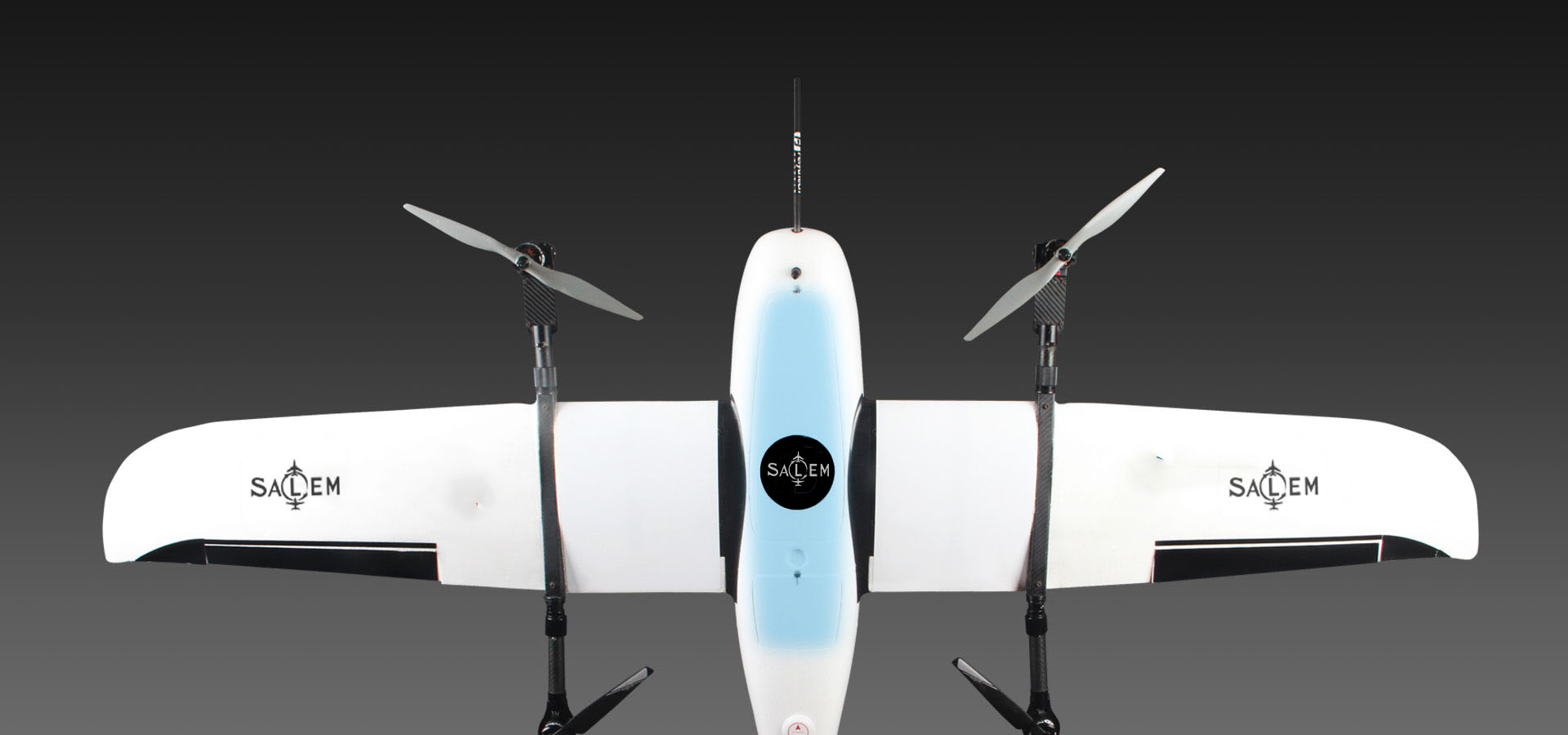

| Structure

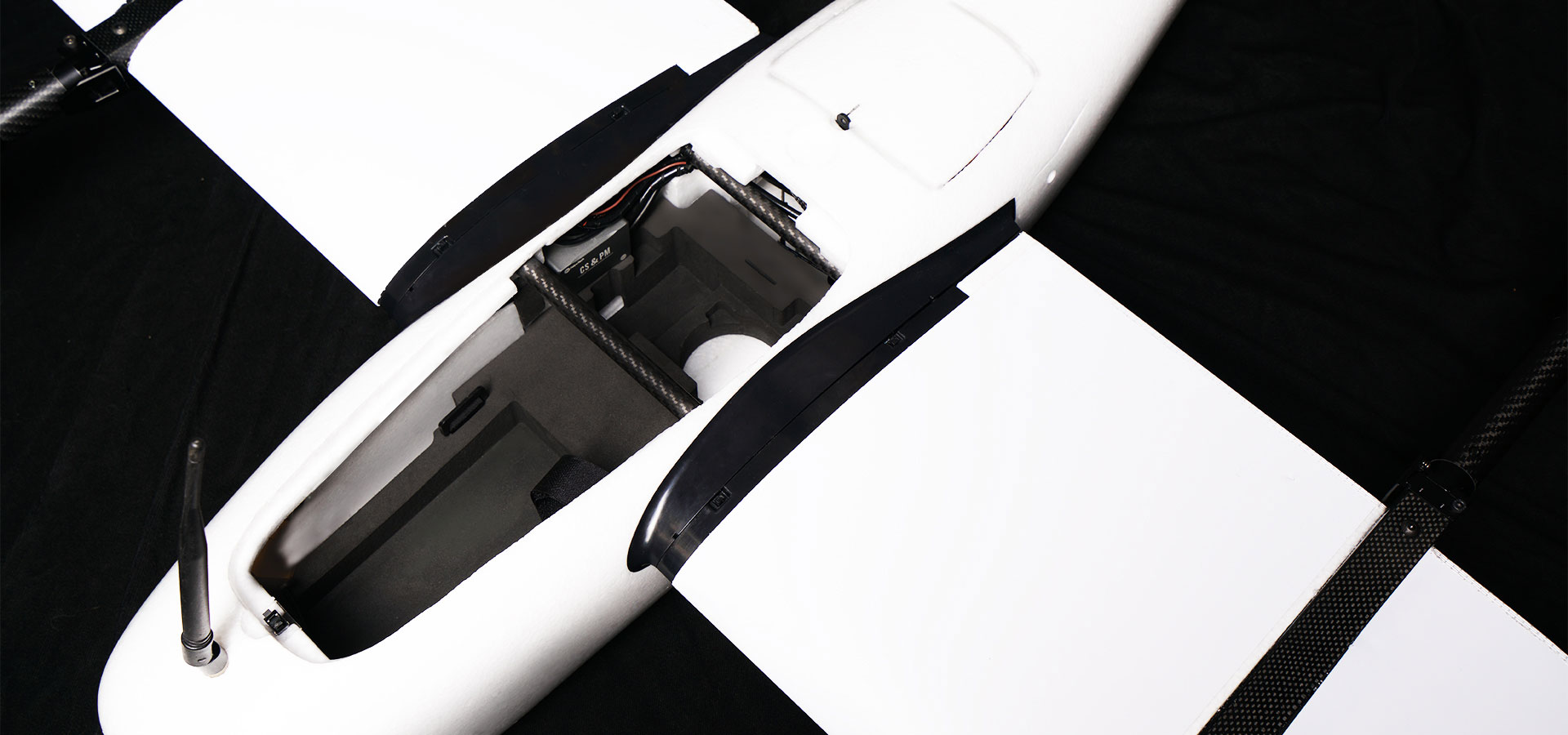

The shape design of the fuselage is based on the aerodynamic principle which make the drone suffer less air resistance during flying. Using carbon fiber and EPO foam can not only make the structure more strong, but also reduces the weight.

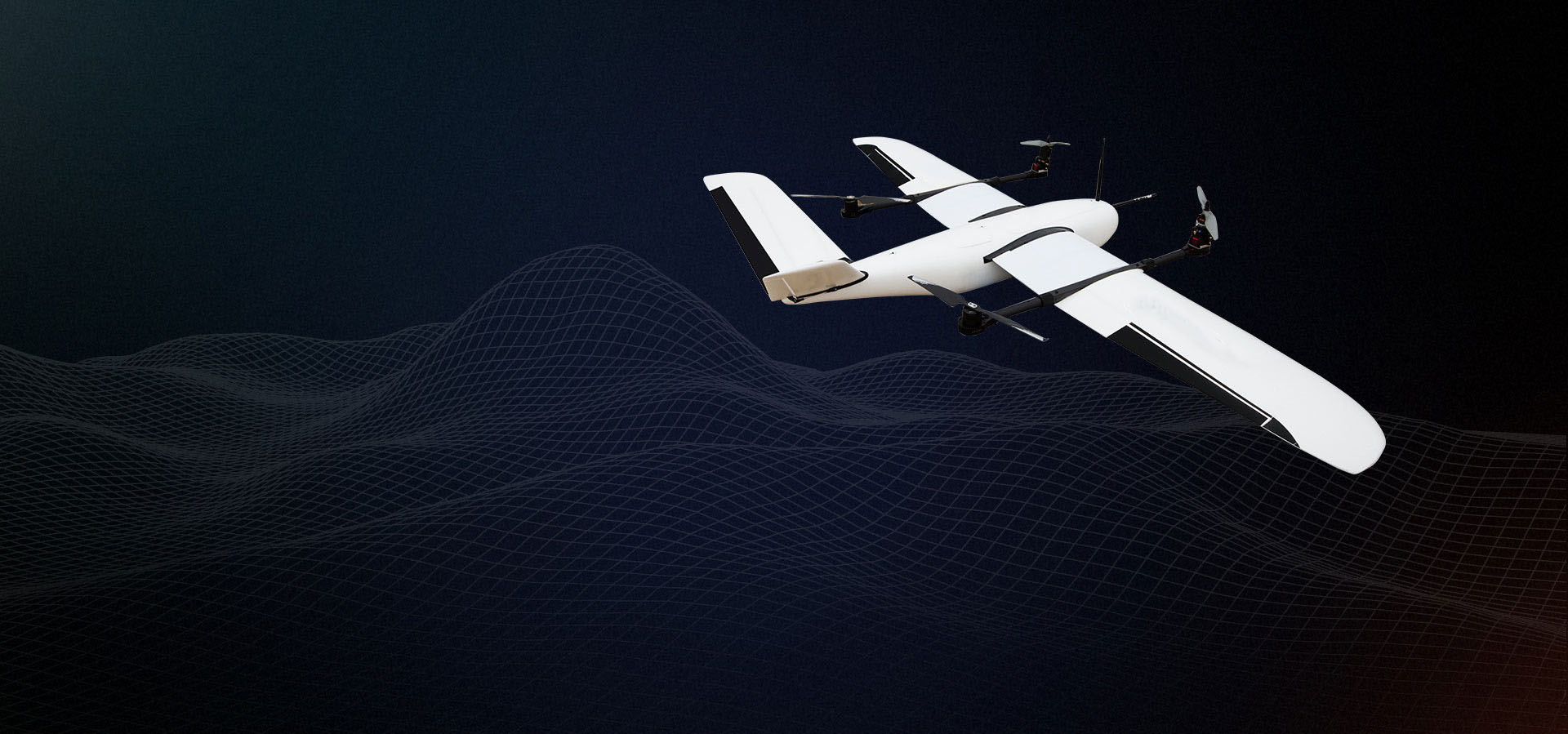

| Intelligent Flight Control & Automated Driving

SS-VT01  is  based  on  fixed-wing  flight  control  platform,  adopts  powerful  dual-processor platform, combines advanced redundancy algorithm and multi-dimensional EKF algorithm for  attitude fusion, and forms a safe and reliable three-degree redundancy system. Built-in shock  absorption structure, the outer casing  adopts  CNC  data  processing  technology,  and  has  excellent stability and anti-interference ability. Can be used with a variety of fixed-wing drones  such  as:  RC(manual  remote  control  mode),  RPV(semi-self-service  control  mode),  UAV  (automatic flight mode) and other flight modes. The user can add a free switching mode during  flight to meet the job requirements in different environments.

Specifications
