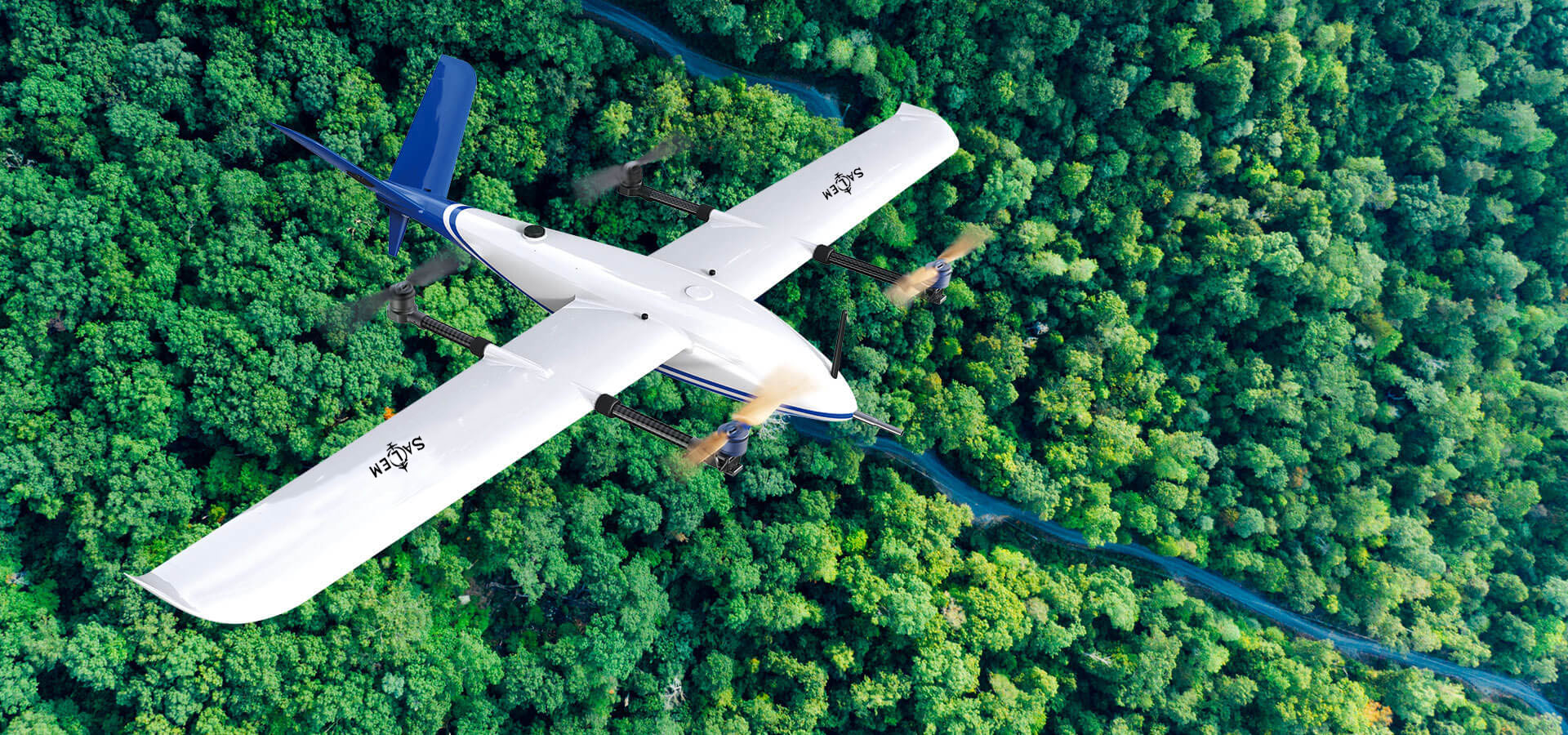

SS–VT03 Vertical Take-off& Landing Drone with Tilting Motor

SS-VT03 is an advanced vertical take-off and landing UAV. The fuselage is made of ultra-light composite material. The UAV adopts the forward motor tilting mode, and the body structure  is simple and reliable. The aircraft can take off and land vertically independently, which  solves the problem that fixed-wing aircraft needs a dedicated runway for take-off and  landing.  It  uses  a  unique  quick  snap  connection  structure,  which can  be  assembled,  debugged and recycled within 5 minutes.

Thanks to its advanced aerodynamic design and advanced flight control technology, the UAV has long endurance, strong wind resistance and excellent flight ability. The advanced automatic flight control system coupled with the simple operation design enables the UAV to be controlled by only one pilot. The flight control adopts three-redundancy design and perfect safety mechanism, which makes the aircraft extremely safe.

SS-VT03 has sufficient space for mission payloads and can accommodate various mission payloads including high-definition cameras, infrared/visible light pods, thermal imaging pods, etc., which greatly meets the needs of various applications of users.



| Features

▶ Adopt the TILT ROTOR which can provide vertical take-off and landing ability.

▶ Maximum battery life of more than 120 minutes .

▶ Detachable, small size, high mobility.

▶ Quick deployment，ready for take off in 5 mins.

▶ Fully autonomous flight,

not restricted by terrain and

▶ Automatic  route  generation,  fixed-point   and  fixed-distance   photography  can   be performed according to the GSD and overlap rate required by the mapping results.



| Structure

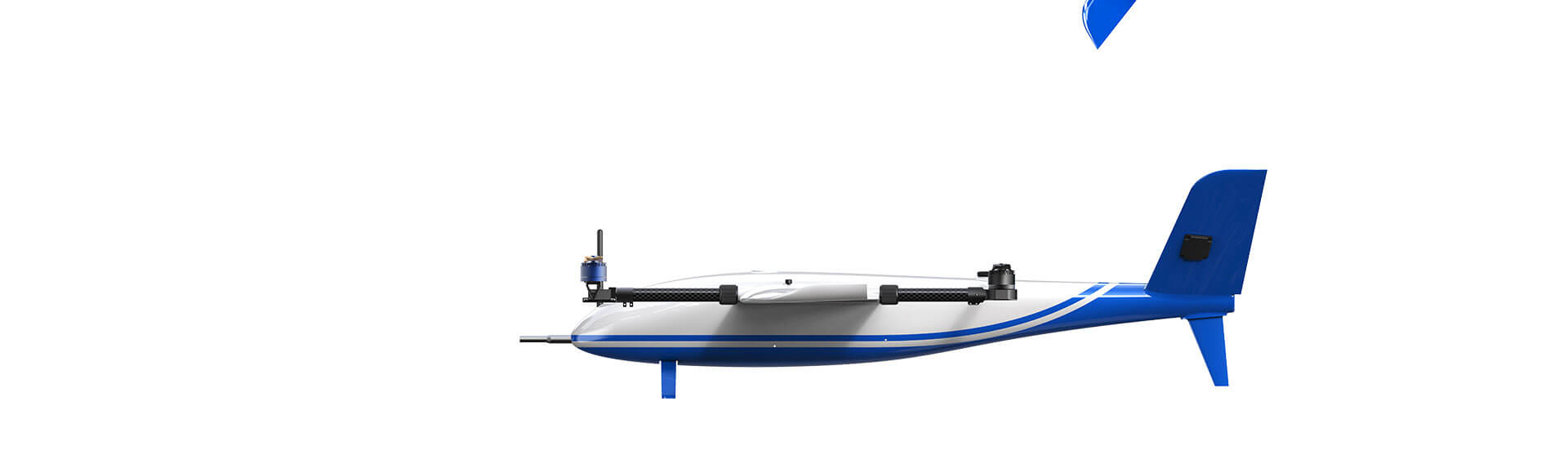

According to the principle of aerodynamics, the layout and design of the fuselage are more reasonable. The whole  UAV  body  adopts  carbon  fiber  composite  material  and  Kevlar material, which makes the weight of the whole machine highly lightweight and at the same time ensures the structural strength.



| Motor Tilting VTOL Design

SS-VT03  adopts  motor tilting vertical take-off  and  landing  design,  combined with the advantages of rotorcraft, to achieve vertical take-off and landing without runway, climb to  the designated height of the task, the motor tilting automatically switches to fixed-wing  flight, providing greater buoyancy to achieve the effect of long stagnation . Meet the needs  of multiple tasks. It can switch between rotor and fixed-wing modes in the air, and can  complete fixed-point take-off and landing and designated point stop planning. It has the  characteristics of long-range cruise and fixed-point monitoring.

Specifications



Type	VTOL	Max Take-off Weight	9kg
Fuselage Length	1295mm	Payload	≤2.0kg
Wingspan Lenght	2400mm	Cruising Speed	70-90km/h
Shell Material	Composit +Kevlar	Max Speed	144km/h
Rainproof Rating	10mm/24h	Endurance Time	120 min (depending on the load)
Wind Resistance	Level 7 (headwind)
